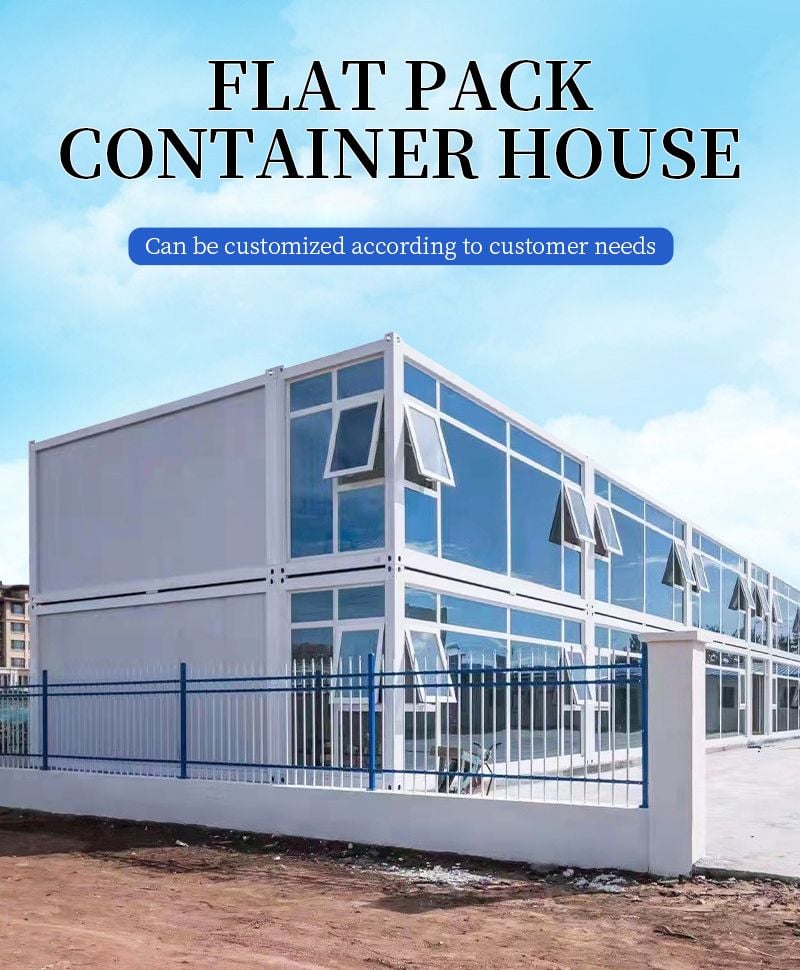

Flat Pack Container House
Flat pack container houses, as a new generation product in the temporary construction industry, are famous for their unique modularity and mobility.

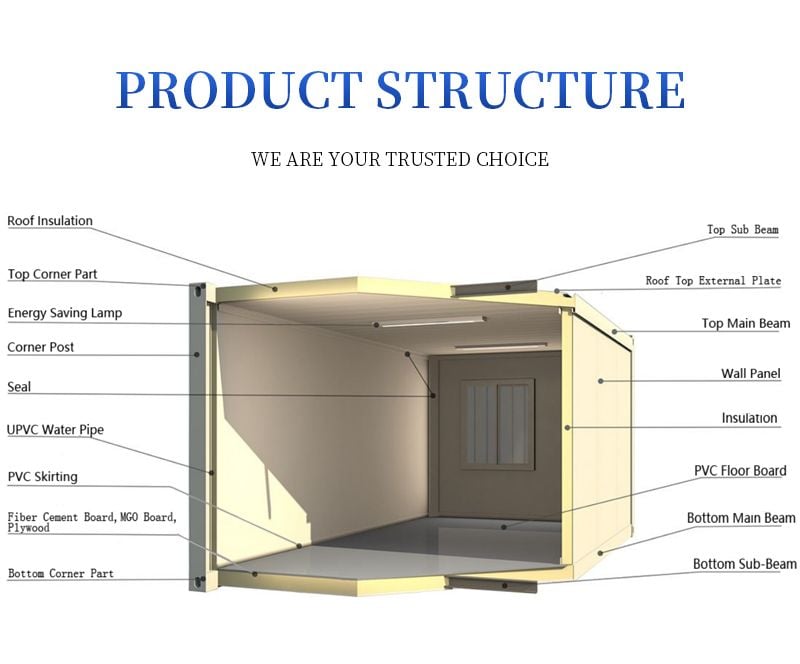

It adopts a steel frame structure, and the main steel material is cold-formed galvanized material, ensuring the strength and durability of the house. This building form is prefabricated in the factory by system modules such as top frames, corner columns and bottom frames, and can be quickly assembled on site without complicated construction.
Flat pack container rooms are widely used in offices, dormitories, conference rooms, bathrooms and other places, and can be easily used.
- Overview
- Recommended Products
Product Overview: Flat Pack Container House
Flat pack container houses, as a new generation product in the temporary construction industry, are famous for their unique modularity and mobility.
It adopts a steel frame structure, and the main steel material is cold-formed galvanized material, ensuring the strength and durability of the house. This building form is prefabricated in the factory by system modules such as top frames, corner columns and bottom frames, and can be quickly assembled on site without complicated construction.
Flat pack container rooms are widely used in offices, dormitories, conference rooms, bathrooms and other places, and can be easily used.
Specifications and Parameters:

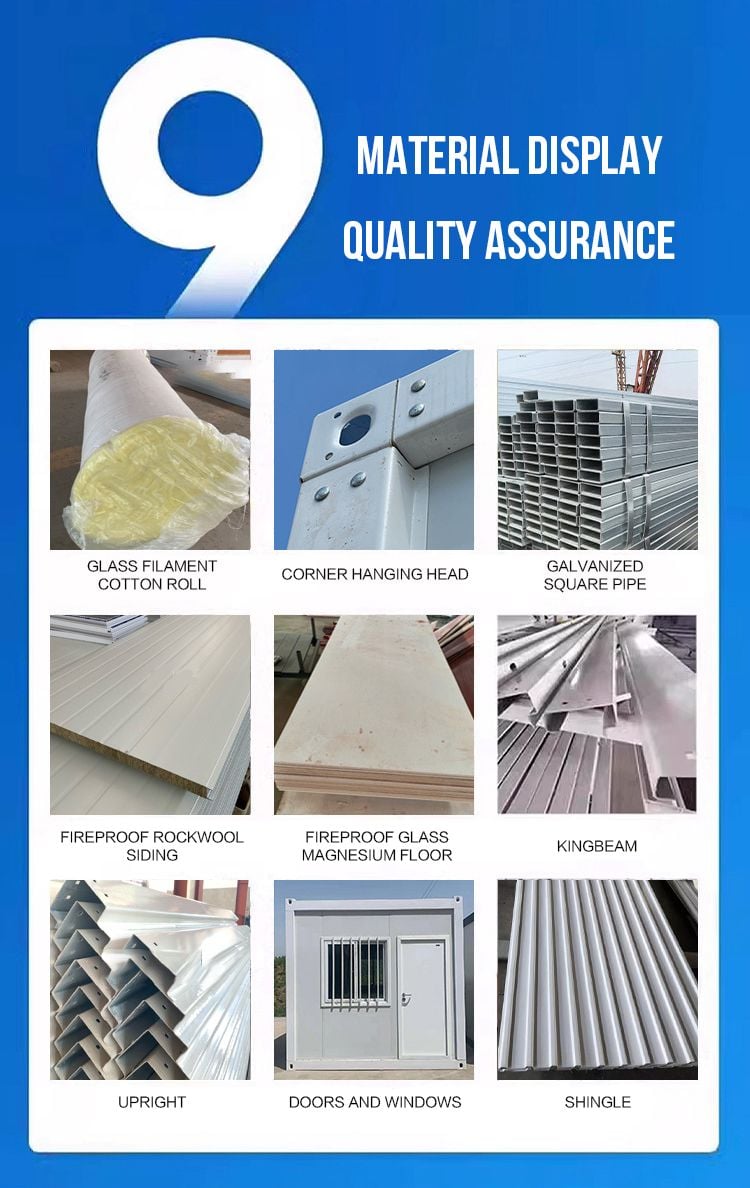

| Structural | High-quality hot-rolled Q235 galvanized steel |
| Roof | Steel beam, rock wool sandwich panel, corrugated color steel ceiling |
| Wall | Color-coated galvanized steel plate, foam, rock wool |
| Door and window | plastic steel, aluminum alloy or customization |
| Color | White, wood grain or customization |
| Size | 5850*2430*2896mm or customization |

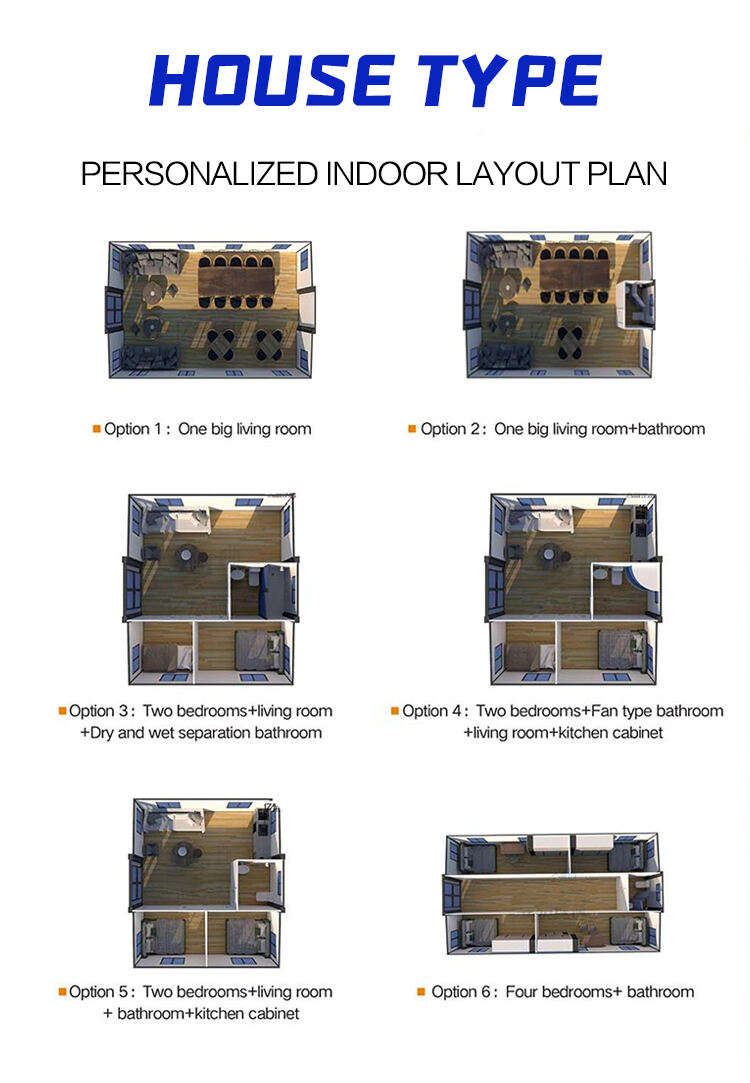

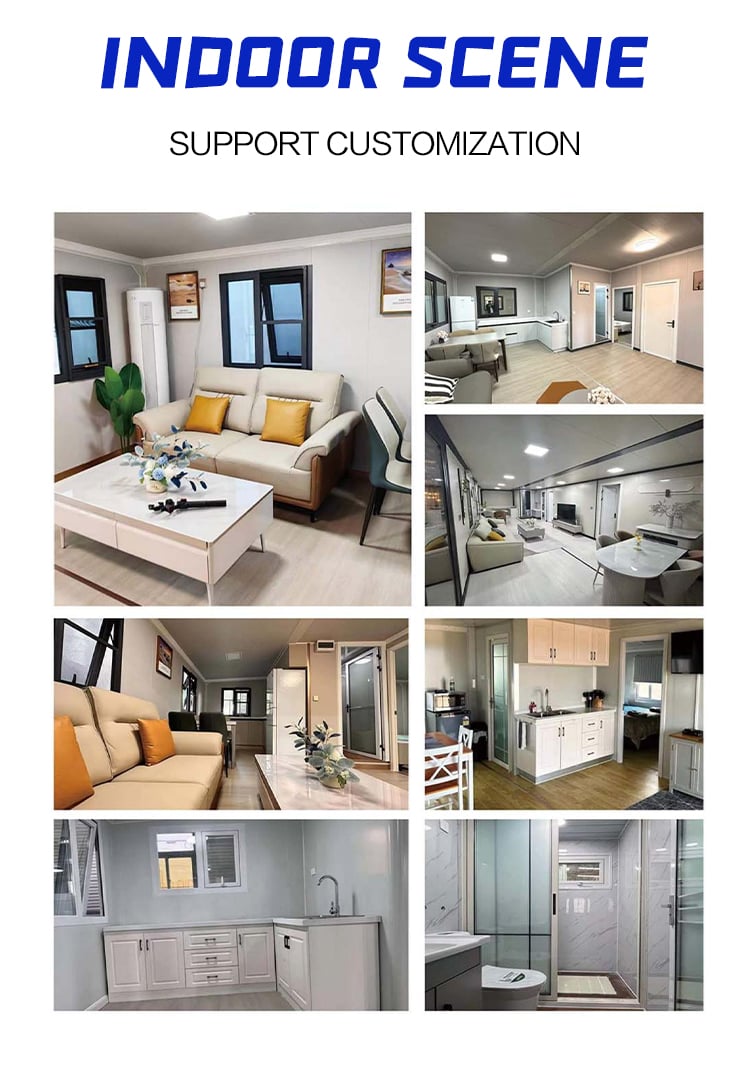

| Internal design | Free design |
| Standard | Strictly follow ASTM, JIS, EN, DIN, GB and other international and domestic authoritative standards |
| Product life | More than 20 years |
| Transportation | Sea transportation, 6-8 sets/1*40hq |
Product Features:
1. Highly practical
The house has strong earthquake and wind resistance, good insulation effect, strong load-bearing capacity, can be combined and stacked for use, and the service life can reach more than 20 years.

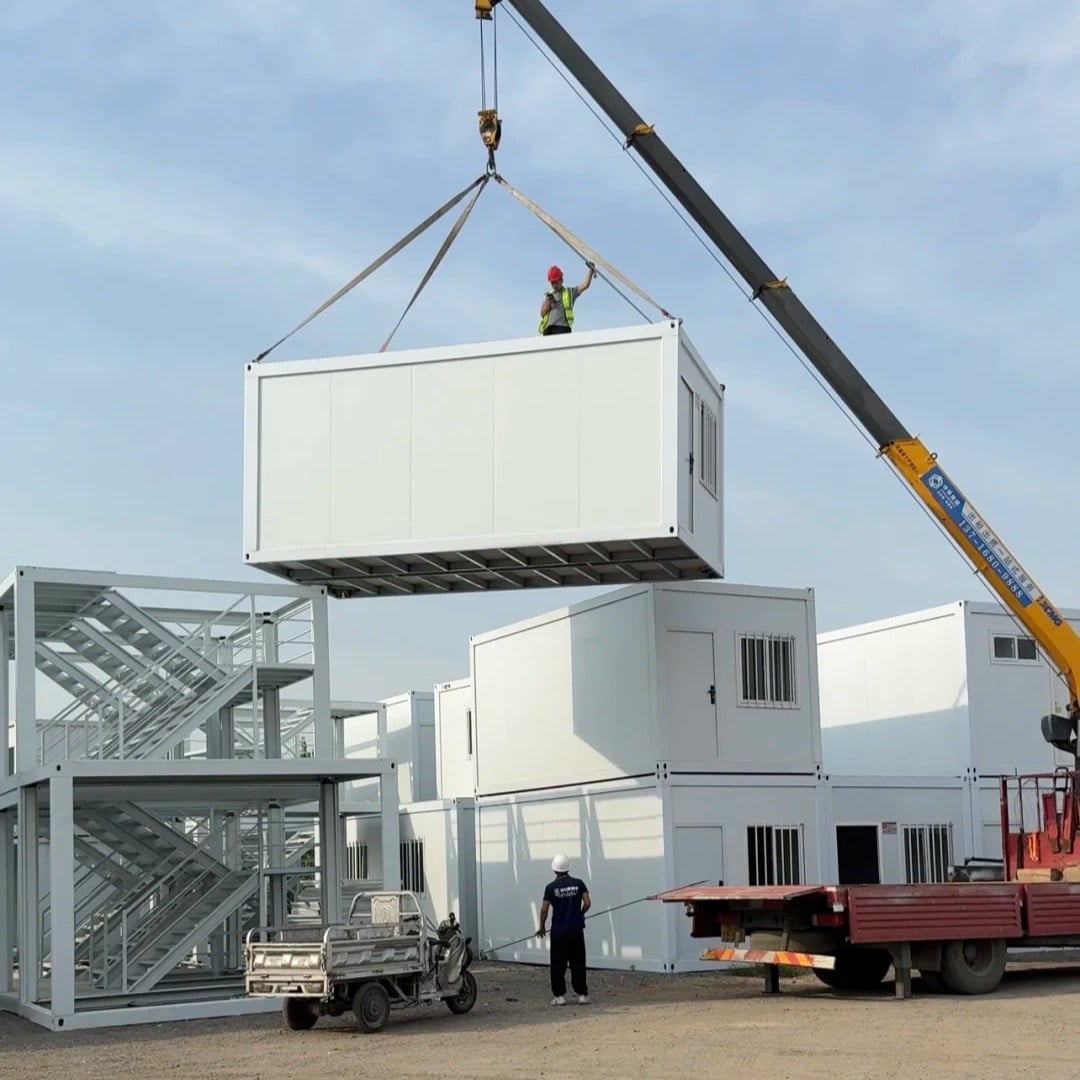

2. Fast installation and easy transportation
Whether it is integrated or split transportation, it can be easily implemented to meet the needs of rapid deployment.
3. Wide application scenarios
There are no special requirements for the site, and it can be used immediately, saving a lot of time and cost.
4. Green and environmentally friendly
No construction waste is generated, which is in line with modern environmental protection concepts.
Application Scenarios:
Residence/Office/Hotel/Shop/School/Hospital/Camping/etc
| Flat Pack Container House | |
| Size | 5850*2430*2896mm |
| Inner size | 5690*2270*25000mm |
| Packing size | 5850*2430*560mm |
| Weight | 1200kg |
| Top frame180mm high |
4 large hanging heads,80C steel 1mm thick,30*30*1mm square tube,top beam length L=5428 *2 pcs, short beam L=2128*2.3mm *4 pcs galvanized zinc ftitting |
| Bottom frame 160mm width | 4 large hanging heads,square tube 100mm*50mm *9pcs,ong beams L=5668 *2pcs, L=2668 *2pcs,short beam 160mm |
| Column | 160*160*2510mm *4 pcs, L=2110 *4pcs,hexagon socket bolts(12*30), rib 2pcs |
| Color roll cap | 75 glass wool,colored tile 0.4mm thick,special waterproof method PE film |
| Down pipe | 450mm, L2730mm PVC downpipe *4pcs |
| Ceiling tile | 831 tile type, 0.3mm thick ceiling tile *7pcs |
| Angle aluminum | Fixed ceiling tile (same material as ceiling tile) |
| Calcium silicate board | 18mm calcium silicate board, 1178*2820mm *5pcs |
| Floor | 1.0mm thick floor leather, with wear-resistant layer |
| Steel door | Containehouse special steel door 970*1970mm *lpc stainless steel AB type lock |
| Plasstic steel window | Single layer, sliding wndow, size 930*1130mm *2 pcs |
| Double layer 0.26 thick | 950 type 50mm thick,double peel thick 0.25,orange peel color.single surface film,oad capacity 50kg rock wool |
| Inner corner fold | Color steel finished product 2500mm*4 pcs include fix parts |
| / | PVC whitecolor, 5800mm *3pcs |
| Parts | Installation screw, connecting plate, structural glue 995 type, etc. |
| Standard | Brand 3 hole socket *3pcs,5 hole socket *2pcs,switch *1pc,LED strip ceiling lamp *2pcs,PVC distribution box *1pc,32A leakage protection *1pc,32A industry socket *1set,main wire 4m²,socket wire 2.5m²,light wire 1m² |
Frequently Asked Questions (FAQ):
Q: What are the advantages of your factory?
A: We not only have a container house assembly factory, but also steel raw material production factories, which does not rely on procurement and saves purchase costs of material, more competitive prices and best after-dales service than other factory.
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, third Party Inspection is also available.
Q: What is your supply capacity?
A: 50 sets of container houses per day and 1,500 sets per month.

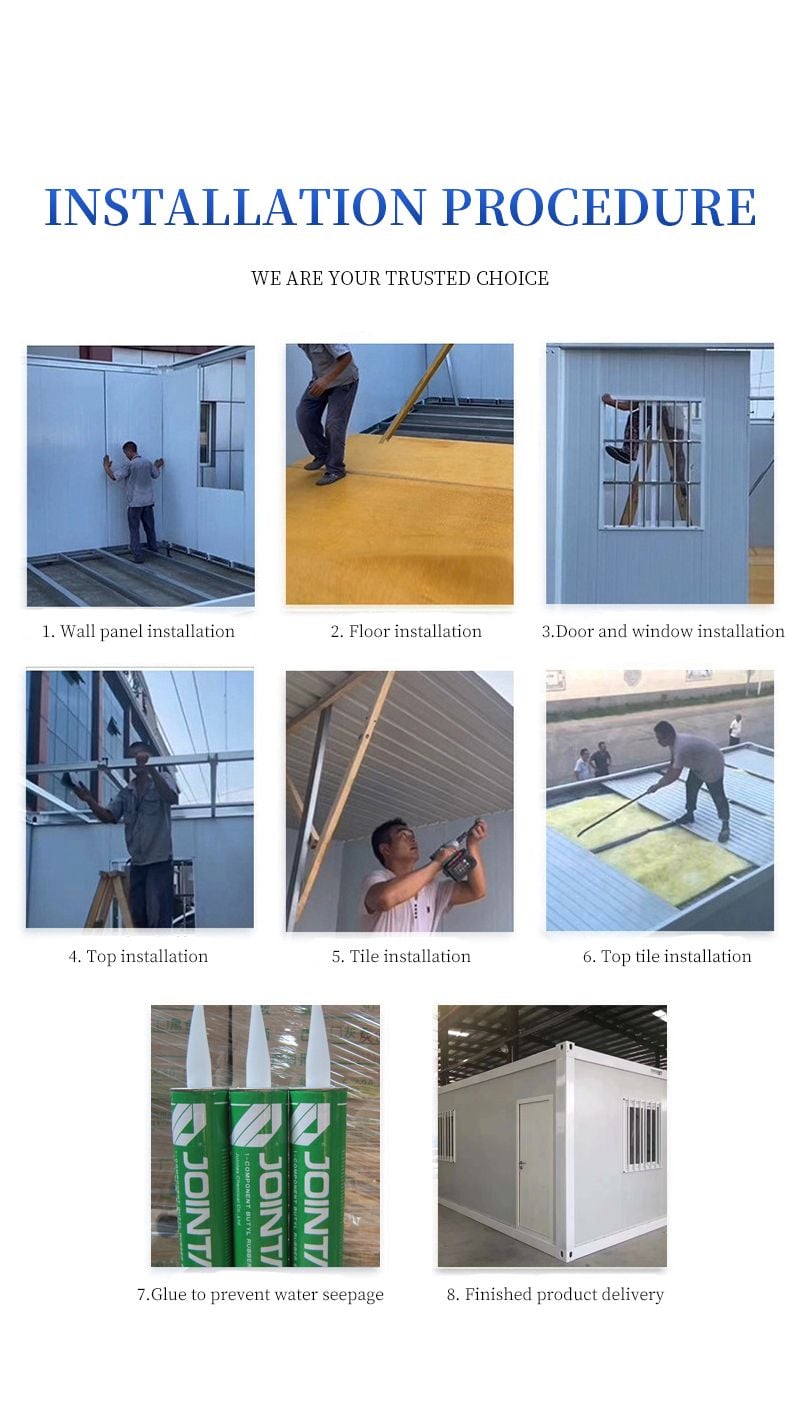

Q: How to install?
A: Instruction manual and video will be provided or online technical support installation instructions, to ensure that customers can complete the installation quickly and well.
Q: How long is your delivery time?
A: It depends on the order quantity and delivery destination, Please consult customer service to define specific time.
Q: How many coutries you already exported?
A: Exported to more than 50 countries mainly from North America, South America, Southeast Asia, Middle East, Africa, etc.
